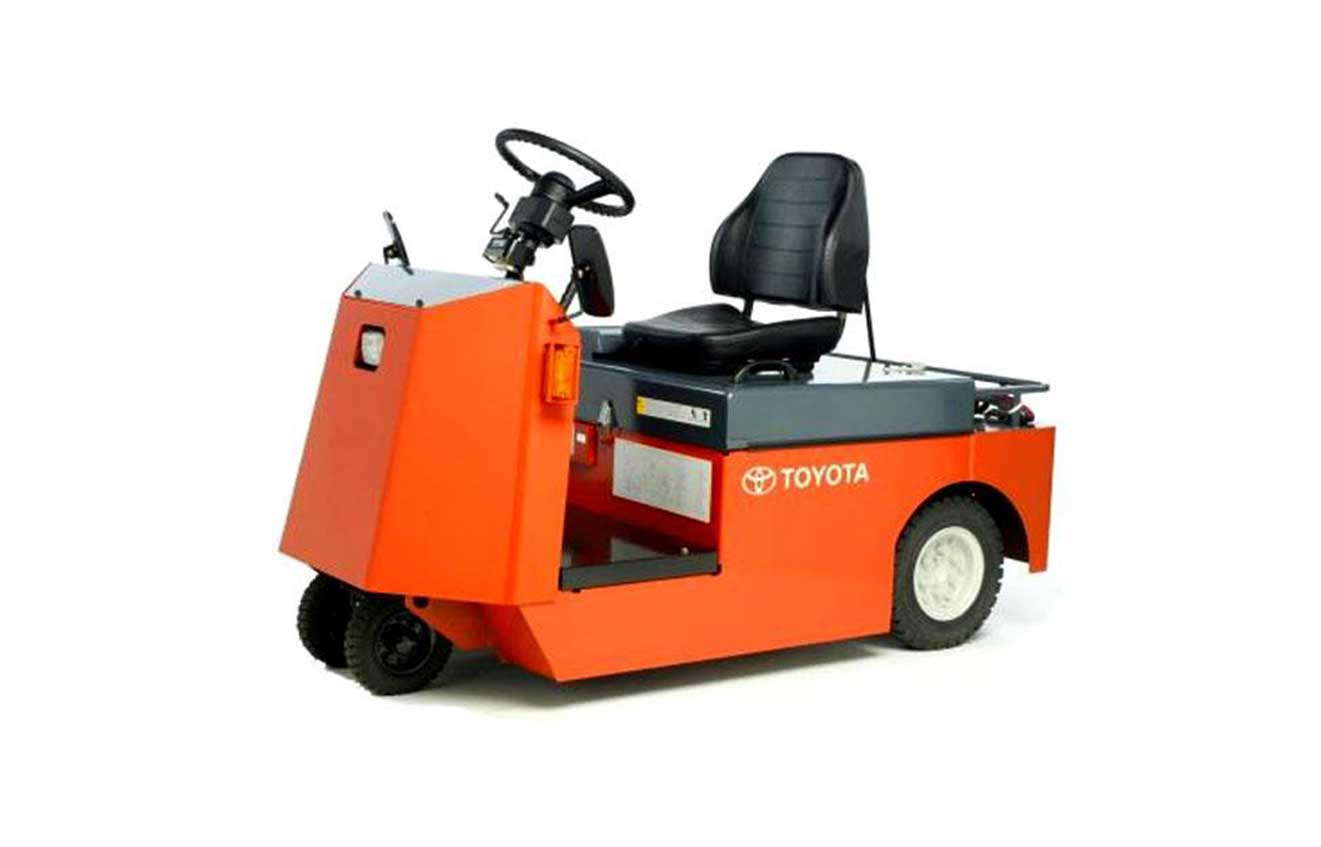

Toyota CBT(Y) 4.0-6.0 Tonne
Electric Compact Towing Tractor

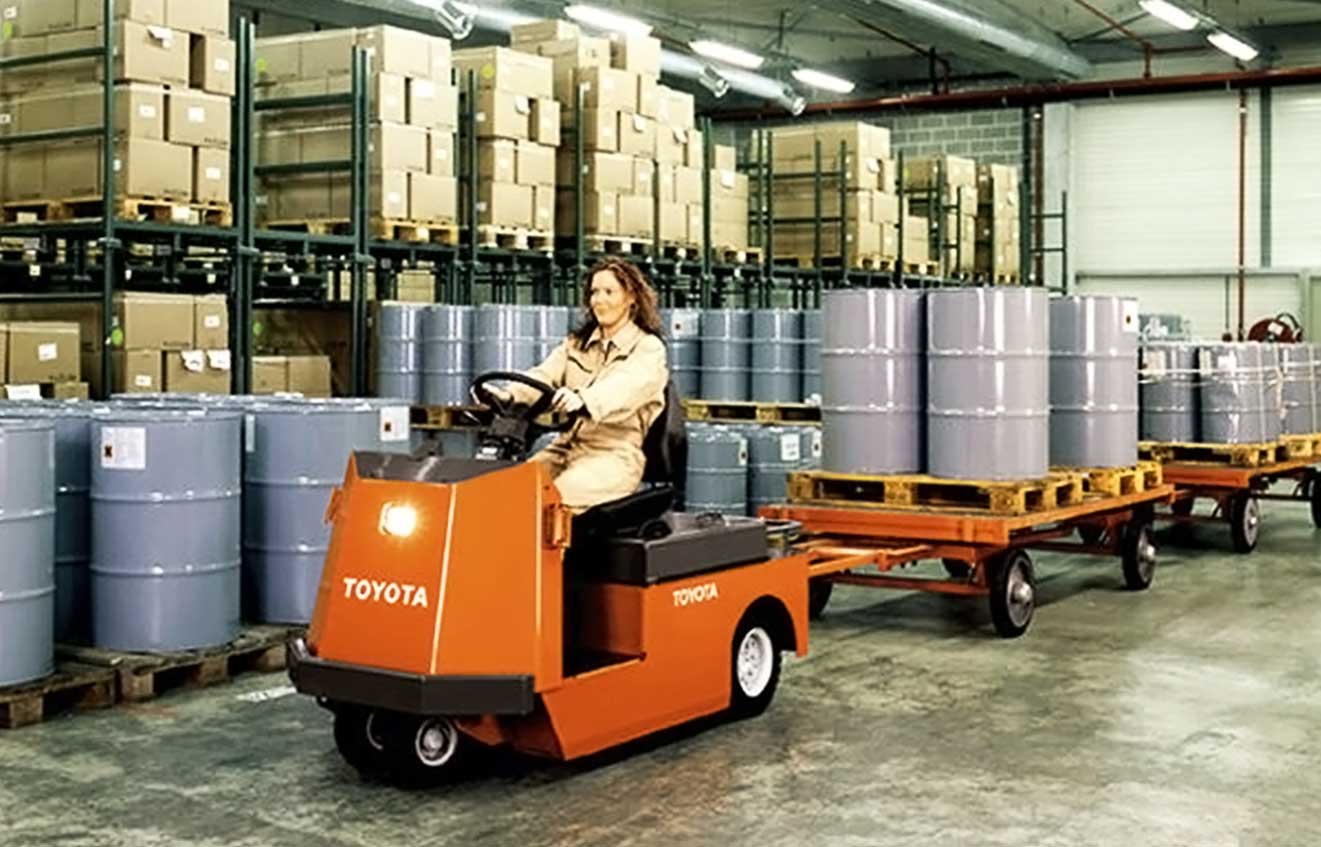

The Toyota compact towing tractors CBT4/6 (sit-down type) and CBTY 4(stand-up type) enables easy long-distance transportation of large quantities of materials and provide operator-friendly, superior manoeuvrability and operability, are your powerful material-handling partners in horizontal transportation.
Download CBTY4CBT4.6_E_1607.pdf
Download 4CBT_4CBTY.pdf
Productivity
- Compact body & 3-wheel platform contributes small turning radius, which enables smooth travel in limited space. Turning radius of 1775mm for CBT4/6 & Turning radius of 1600mm for CBTY 4.
- Powerful drive motor which provides 2.6kw power. CBT4 & CBTY4 travels at the maximum speed of 9km/h with a 2-tonne towing load.
- Heavy-duty steel frame construction
- Smooth acceleration & improved battery & improved battery efficiency by a transistor control system.
- Drive motor mounted transversely to provide excellent power & gradeability.
Durability
- Wide step opening allows the operator to enter and exit with ease.
- Vertically adjustable sliding seat and optimal hip-point height improve operator comfort.
- The rear-drawbar lever type allows the operator to easily disconnect the towing trolley while seated (Optional for CBT4/6 only).
- Rear cargo crack allows operators to securely place packages.
Sustainability
- Battery rollout for easy battery replacement (Standard for CBTY4 & optional for CBT4 & 6).
- Full open hood for easy battery check (CBT4/6); with a damper that holds the hood open for easy maintenance.
- Simplistic instrument panel and easy driving systems allow operators to drive the towing tractors with ease.
