Material Handling

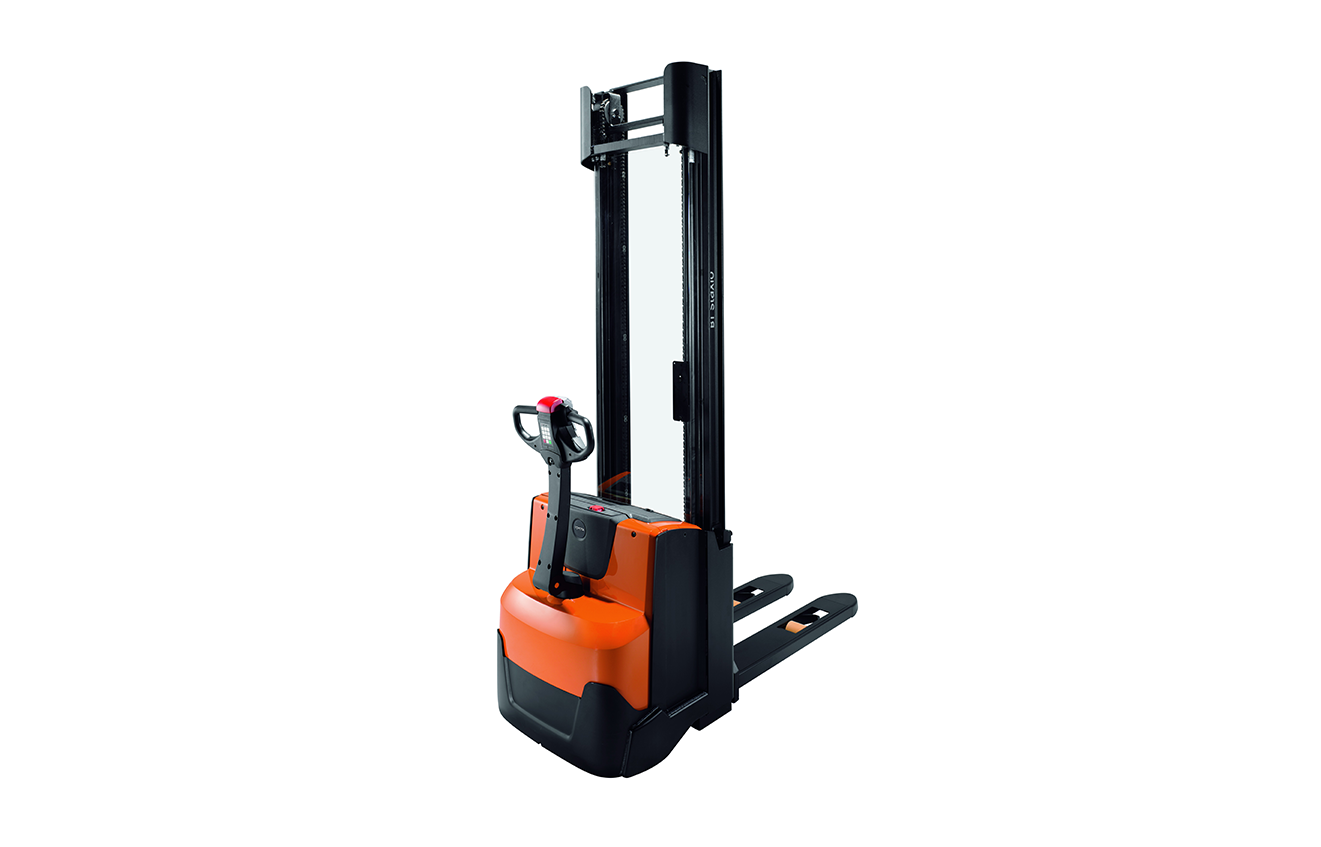

BT Staxio SWE120/120S/200/140S

Electric Powered Stacker

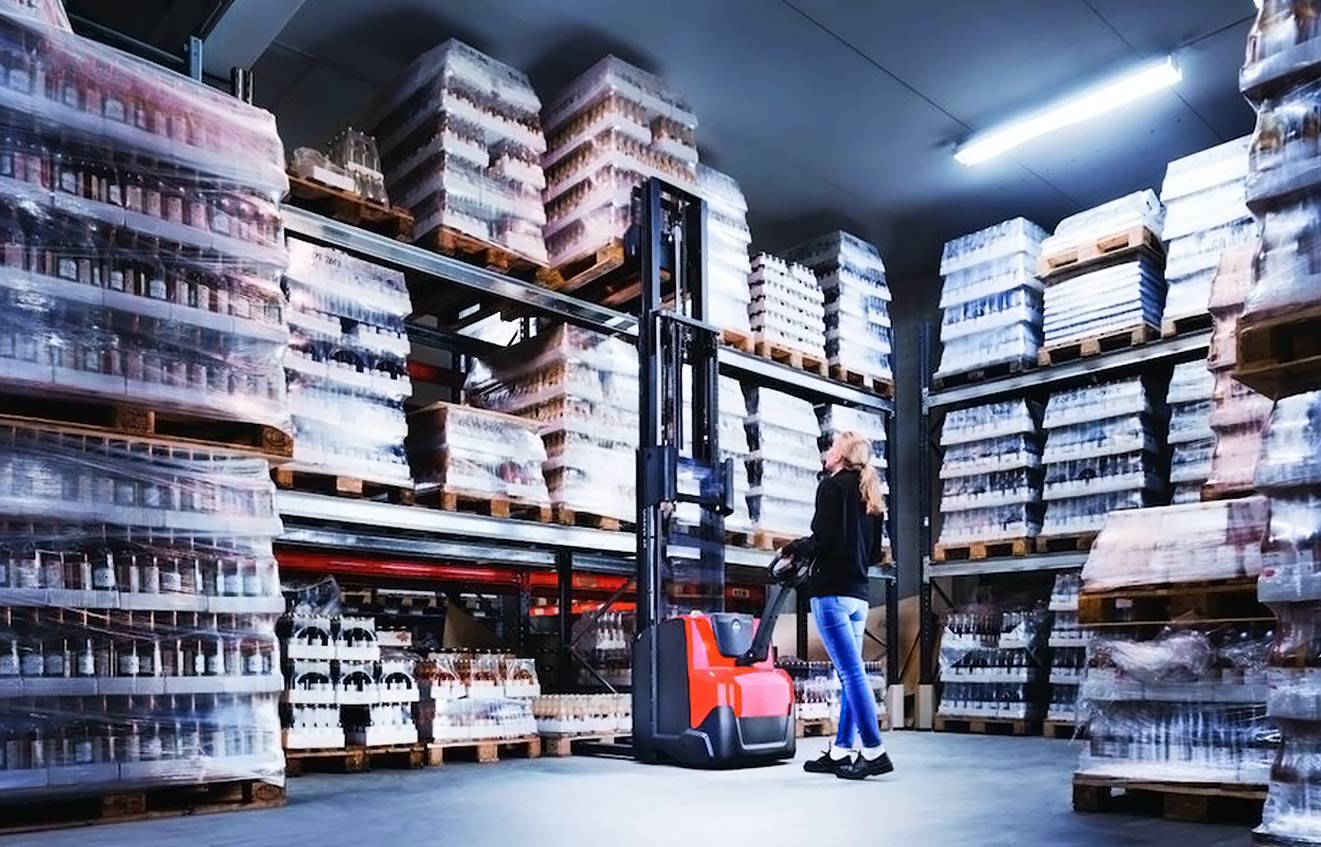

The BT Staxio Electric Powered Stacker is designed with a wide choice of mast, fork, and battery configurations for all applications such as loading and unloading, order picking and general pallet transport. The truck is designed and built for safety, durability, reliability and is easy to use besides increasing productivity. Capacity ranges from 1200kg to 2000kg with speed up to 6km/h for SWE120-200 range and 1200kg to 1400kg for straddle support arm model.


  • Variety of models to suit different customer needs.
  • High performance truck always ensures smooth and progressive control which contributes to more efficient operations.
  • Compact sizes of trucks are suitable for usage in confined areas.
  • BT Total view design concept are providing excellent view of forks from operating position to have accurate placement when positioning at height thus ensuring high productivity.
  • Five-wheel chassis improves stability on ramps ensuring smooth operation.
  • Double stacking enables more goods to be carried at once to increase productivity.


  • Comes with AC drive motor with fewer wearing parts.
  • Programmable performance of trucks to suit different applications and driver’s skill level.
  • Permanently mounted drive motor which reduces wear on cables.
  • Fork carriage with linear lifting which is a stable design for high durability.
  • Strong forks for intense applications.
  • Sealed connectors, non-contact switches, leak-free hydraulic connectors and CAN-Bus wiring add up to maximum durability and reliability.


  • Ergonomic tiller arm provides easy control and excellent fork-tip visibility besides keeping the user a safe distance from the truck.
  • Click-2-Creep feature enables the truck to travel at creep speed with tiller arm in upright position to be manoeuvred in confined areas.
  • Sensi-lift provides step less lift for easy and accurate placement.


  • Rounded skirt balances safety with manoeuvrability.
  • Truck does not roll back when starting in an inclination.
  • Cut-off button and handle safety button acts as emergency controls to prevent operator from being trapped in between of obstacle and truck.
  • Chassis designed for high safety where act there is no risk of foot injuries or damaged goods.
  • Acceleration and braking characteristics can be programmed to match individual preferences.
