Electric Reach Trucks


4-Way Reach Truck

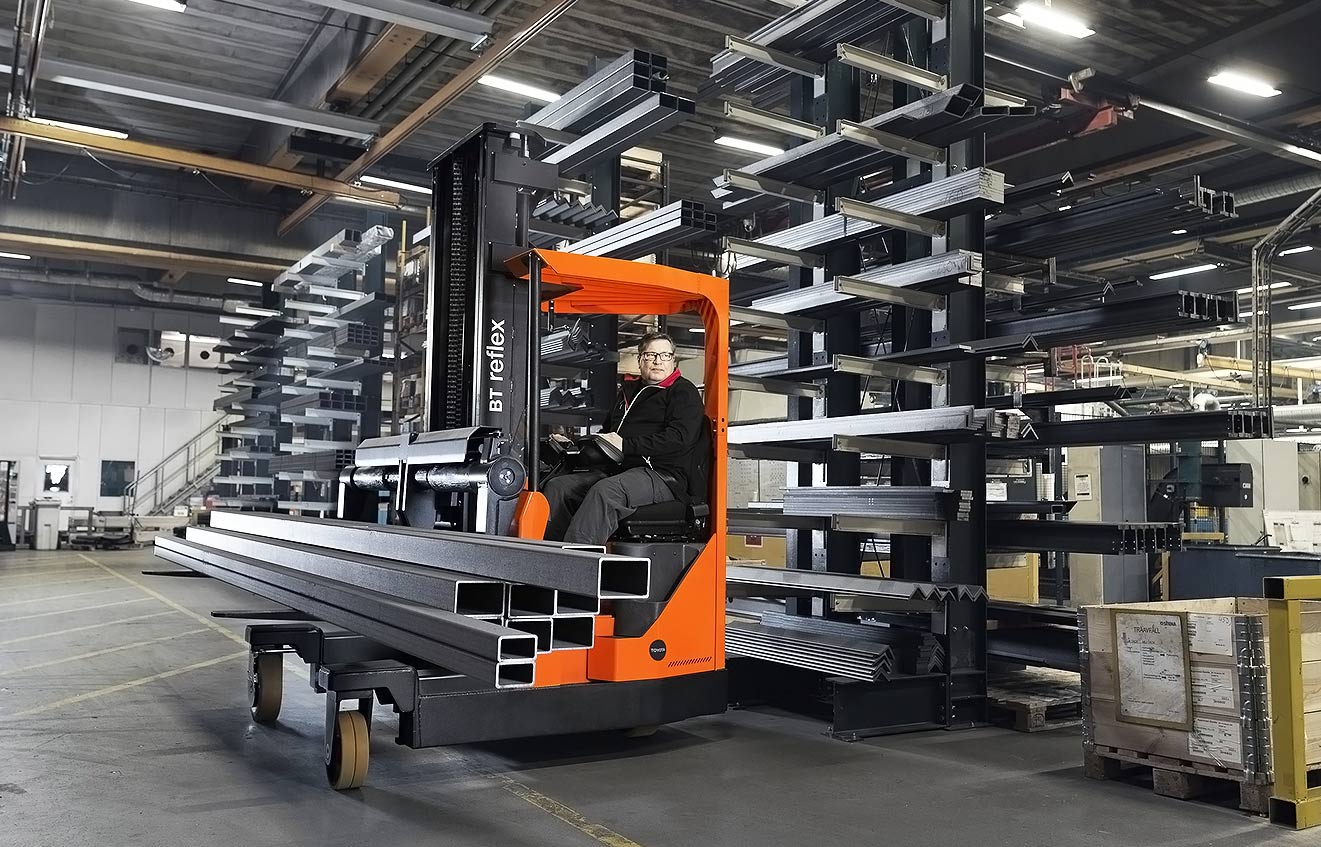

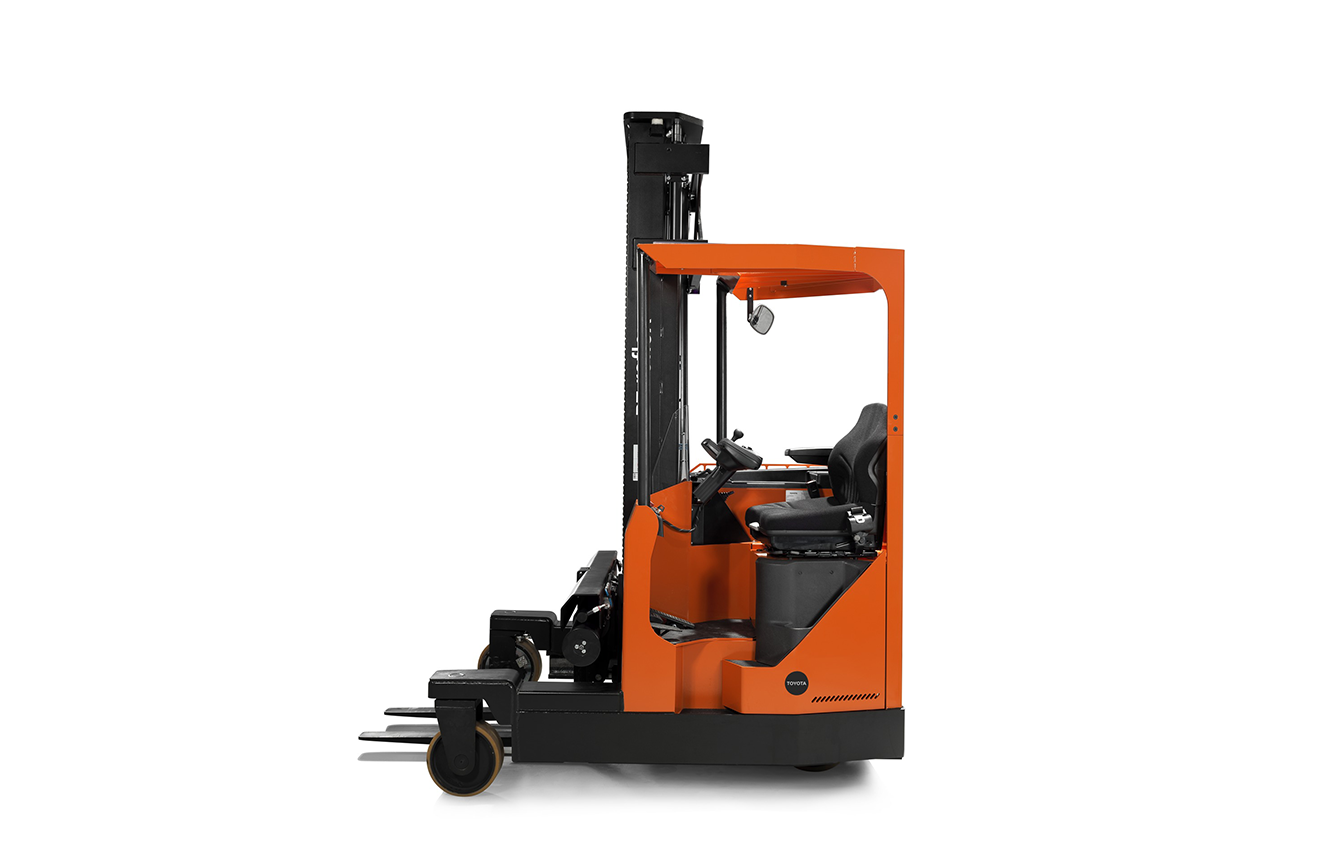

The unique design of the BT Reflex F-Series is a 4-way reach truck which delivers the combined benefits of advanced design and AC power for applications which required long-load handling, and also the ability to handle conventional pallets in confined worksite.


  • The support arm wheel on the BT Reflex F-Series reach truck can turn through 90°, thus changing the direction of travel.
  • Drive and castor wheels are built on cross-mounted bogie to allow turn traction on uneven floors.
  • The braking system is electronic, progressive and regenerates energy to the battery.
  • 2 different hydraulic fork spreaders available. Wide fork spread across support arms range from 540mm – 2160mm. Thin fork spread between the support arms range from 400 – 960mm.


  • The driver compartment is fully adjustable to provide comfortable driving position.
  • The ergonomic design of the overhead guard provides a clear upward view to the forks when working at height.
  • Clear-view mast and fork carriage deliver a view to the load to ensure safe and accurate handling.


  • Selection of performance parameters can be selected by the 3 push-buttons. located on the dashboard.
  • Hydraulic functions controlled by mini levers for ease-of-use.
  • Electronic height indicator (optional).
  • Electronic height pre-selector (optional).
